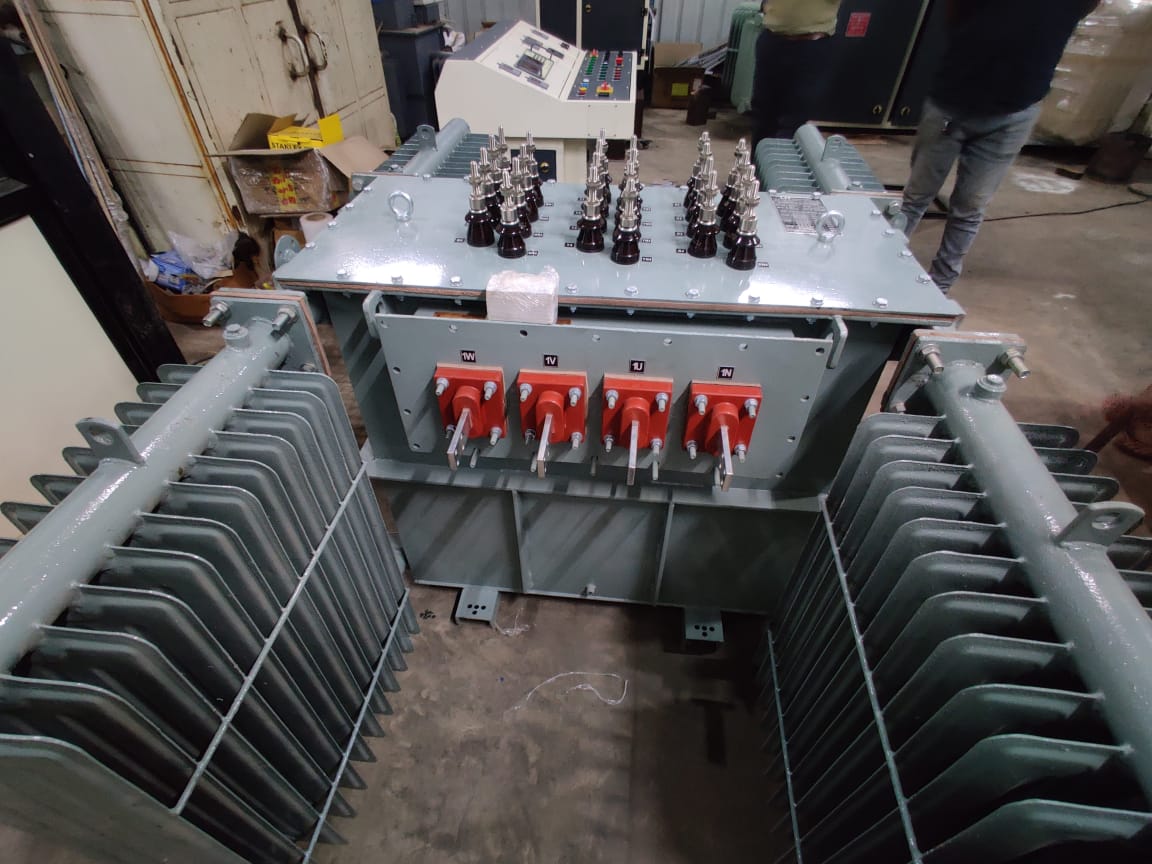

Booster Transformer

Test bench functionality is vastly improved with the latest tecchnologies like voice commmand operation and an intelligent transformer testing software having a report generation & barcode sticker faciltiy. Test bench consists of fully interfaced test instruments, controlling switchgears, indication lamps, industrial PC, indidcating lamps and various measuring meters.FAT is suitable for testing of all types of transformers including Power Transformer, Distribution Transformer, Furnace Transformer, Dry type, Cast Resin type, Rectifier Transformer, Generator Transformer, and Locomotive Transformer. FAT increases testing productivity significantly by reducing test preparation time, testing process time and report generation time. FAT eliminates the subsequent cable connection time since cabling with instruments is being fixed. Automated data acquisition ensures error free data logging and assists in carrying out statistical/graphical analysis of Test results. Both Auto and Manual modes are available. Software has the facility of multiple user control, manual data entry, database backup facility, printing formulae sheet as per customer requirement.

LIT Industries make Transformer Testing Panel is designed to simplify the testing of Transformer. Testing panel has many functions, which includes Open Circuit Test, Short Circuit Test, DVDF Test, HV Test. Each test may be conduct using simple Test selections switch. All Controls, Instrument, and connections are panel-mounted for ease of access and viewing.

Alternately, manual test bench functionally is made more sophisticated with use of a PLC controller. With this test bench discrete indicators, meters selector switches and push buttons are no longer require for this type of testing facility. Automatically test report will be generated through this panel. In addition to the above, customer can see single line diagram of whole power circuit that can be visualize and can be control through computer. The meters of panel is interfaced with computer and PLC.Features: Panel operate through PLC and Software installed in PC All tests can be perform by One Screen The test results are saved in PC as well as in server also if require All the features are given through password protection Auto and Manual Mode available We can measure and test all the tests with less number of connection from panel to testing transformers The size of panel is very compact, so engineer can easily move it from one place to another
