transformer test set up

Test bench functionality is vastly improved with the latest tecchnologies like voice commmand operation and an intelligent transformer testing software having a report generation & barcode sticker faciltiy. Test bench consists of fully interfaced test instruments, controlling switchgears, indication lamps, industrial PC, indidcating lamps and various measuring meters.FAT is suitable for testing of all types of transformers including Power Transformer, Distribution Transformer, Furnace Transformer, Dry type, Cast Resin type, Rectifier Transformer, Generator Transformer, and Locomotive Transformer. FAT increases testing productivity significantly by reducing test preparation time, testing process time and report generation time. FAT eliminates the subsequent cable connection time since cabling with instruments is being fixed. Automated data acquisition ensures error free data logging and assists in carrying out statistical/graphical analysis of Test results. Both Auto and Manual modes are available. Software has the facility of multiple user control, manual data entry, database backup facility, printing formulae sheet as per customer requirement.

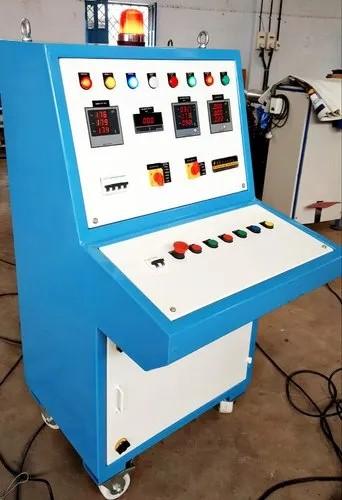

LIT Industries make Transformer Testing Panel is designed to simplify the testing of Transformer. Testing panel has many functions, which includes Open Circuit Test, Short Circuit Test, DVDF Test, HV Test. Each test may be conduct using simple Test selections switch. All Controls, Instrument, and connections are panel-mounted for ease of access and viewing.

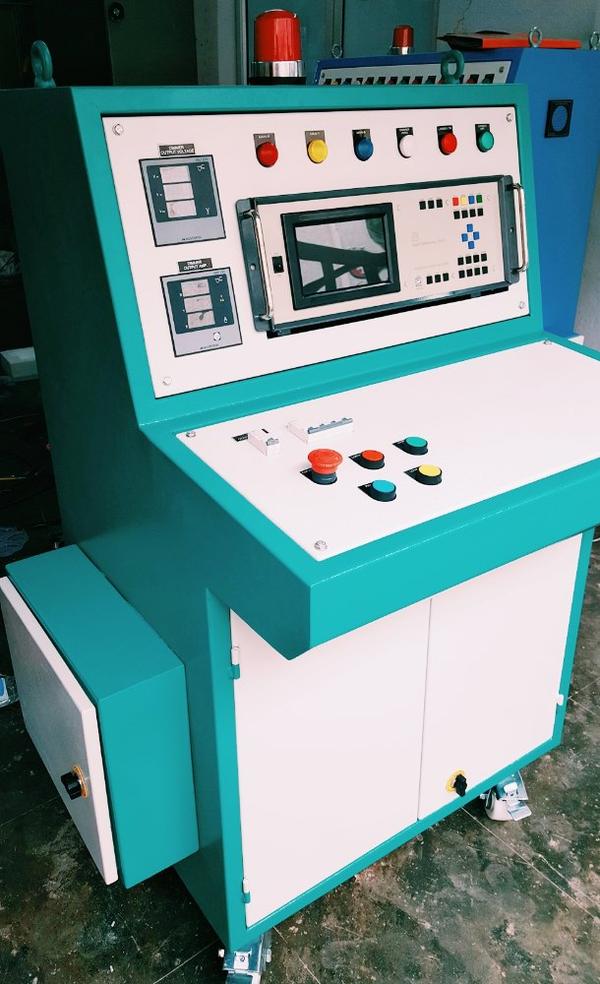

Alternately, manual test bench functionally is made more sophisticated with use of a PLC controller. With this test bench discrete indicators, meters selector switches and push buttons are no longer require for this type of testing facility. Automatically test report will be generated through this panel. In addition to the above, customer can see single line diagram of whole power circuit that can be visualize and can be control through computer. The meters of panel is interfaced with computer and PLC.Features: Panel operate through PLC and Software installed in PC All tests can be perform by One Screen The test results are saved in PC as well as in server also if require All the features are given through password protection Auto and Manual Mode available We can measure and test all the tests with less number of connection from panel to testing transformers The size of panel is very compact, so engineer can easily move it from one place to another

The measurement of the losses in power transformers is an indispensable quality verification process. Due to the fact that normallythe transformer user puts a penalty on the lossesthat occur in the load and no-load modes, thegreatest possible accuracy in measuring thepower losses is of primary economic importance.The TLM system was specially developed for highlyaccurate measurements of power losses intransformers.

Induced Over Voltage Test Set (DVDF) is used for testing the strength of insulation between turns and between other points of the transformers etc. as stipulated by BIS or other standard specification. To regulate the output voltage, DVDF Panel is used. A suitable control panel is utilized for motor starting, generator output control, measurement of all three phases, voltage and current for input and output with protection circuit. Features: Simple design, compact and economical. Manual output voltage control of Generator through Dc excitation.

We are among the reliable and trusted manufacturer, supplier and service provider of excellent range HV Test Control panels. We offer our clients excellent quality HV test control panels with indicators and controls for testing high voltage materials. These HV test control panels have very user friendly interface which provides accurate reading. Our HV test control panels are very durable and reliable ideal for long lasting use. We provide these HV test control panels to our wide clientele at very pocket friendly prices. Features: User friendly Robust construction Excellent durability Superior functionality

Core loss tester determines that whether a Core is damaged or not. Damage could include shorts between laminations and electrical arcing. Although it is possible for a Electrical Equipment to still operate with damaged core but efficiency of that Equipment will get reduced. The Equipment will consume more power.

This Testing bench is used to confirm the vector group of Transformers, to check magnetic balance of Transformers as per CBIP also, to perform Zero Phase Sequence Impedance Test. Features: Current injector kit, dimmer and meters are provided in panelTesting time will be reduced Engineer can test OC-SC test of distribution transformer.This Testing bench is used to confirm the vector group of Transformers, to detect the faults in the core, to verify the imbalance in the magnetic circuit and to identify inter-turn faults in the transformer at the early stage of manufacturing work. It consists various test instruments, rotary switches, PBs, indicators and meters. Salient Features: Panel is easy to operate, compact size & portable. Testing time will be reduced.

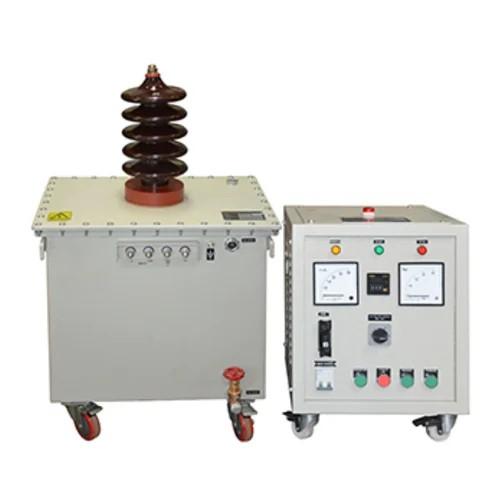

A high-voltage transformer is a device that converts high-voltage AC power to low-voltage AC power or vice versa. High-voltage transformers are mainly used for testing electrical equipment and components under high voltage conditions in laboratories or factories. They can also be used for power transmission and distribution, as well as for special applications such as HVDC, FACTS, and SVC. High-voltage transformers are designed to withstand high voltages and currents without damaging their insulation or core. They are usually oil-immersed, single-phase, core-type transformers with bakelite sheets separating the primary and secondary windings. The cooling system, the bushings, and the voltage regulation of these transformers are also important factors to consider.

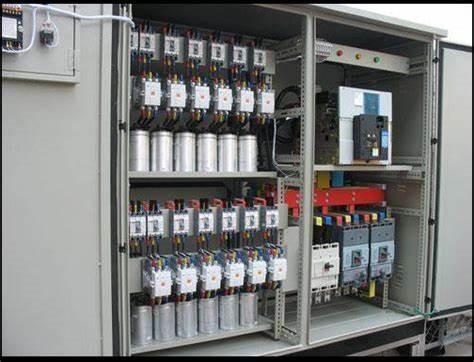

We hold expertise in manufacturing LT capacitor bank (low tension) that is ideal solution for types of power factor problems. Offered at competitive prices, these comprise of power factor controller that helps to accurately monitor reactive power in power systems in order to save energy.

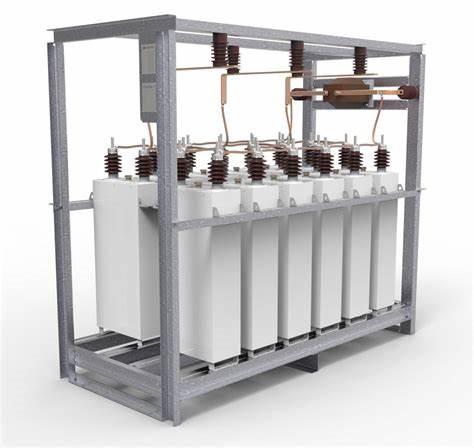

Imported electrical grade double side hazy biaxially oriented PP film as a dielectric 99.9% pure aluminum foil as an electrode Capacitor manufactured under high vacuum plant to avoid impurities Compliance with requirements of IS 13925, IEC 60871, ANSI IEEE STD 18 Less losses. Thirty years design life. Hermitically sealed compact design Anti UV protection based coated paint. Adaptable temperature -24 to +55 Special design construction for compliance to high seismic requirements. Porcelain bushing glazed for high strength and duration.
